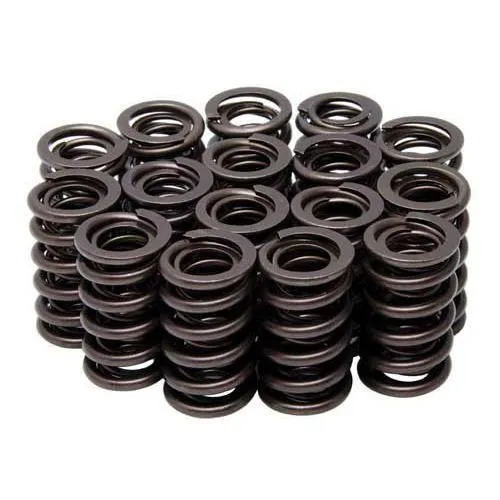

Jaw Crusher Spring

Material : Spring Steel

Usage/Application : Industrial

Surface Finishing : Smooth

Country of Origin : Made in India

🌀 Jaw Crusher Spring – Description

A Jaw Crusher Spring is a critical component in the jaw crusher assembly, designed primarily to provide tension and absorb shock or impact loads. These springs ensure the smooth and safe operation of the machine by protecting it from overloads and sudden mechanical stress during crushing operations.

🔧 Function of Jaw Crusher Springs

Tensioning Mechanism:

Maintains the correct tension on the toggle plate, which plays a vital role in the crushing mechanism.

Shock Absorption:

Absorbs vibrations and impact forces caused by hard or oversized material entering the crushing chamber.

Overload Protection:

Allows controlled movement of the toggle plate in case of uncrushable material, preventing frame or bearing damage.

📐 Typical Features

Type : Heavy-duty compression coil spring

Material : High-strength spring steel (e.g., 60Si2Mn, EN-47, or equivalent) for durability and fatigue resistance

Shape : Helical, cylindrical or conical depending on the design

Mounting : Connected to the tension rod and toggle plate assembly

Finish : Often coated or painted for corrosion resistance

⚙️ Applications

Primary jaw crushers in mining, quarrying, aggregate, and recycling industries

Models from leading OEMs like Metso, Sandvik, Terex, Puzzolana, etc.

✅ Key Benefits

Maintains optimal toggle plate positioning

Protects critical crusher components from overload or damage

Extends overall crusher lifespan

Ensures smooth and uninterrupted crushing operation

🔩 Related Components in a Jaw Crusher:

Toggle Plate

Tension Rod

Pitman Arm

Flywheels

Frame and Bearings
